42 Series

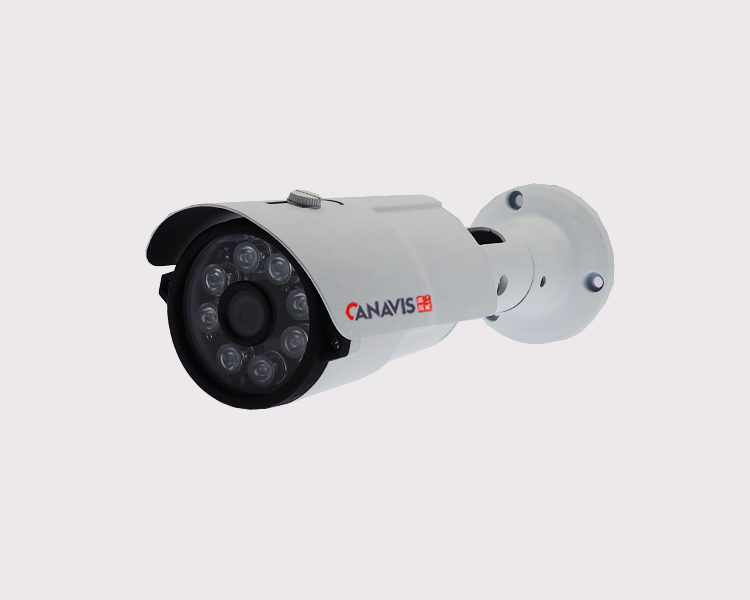

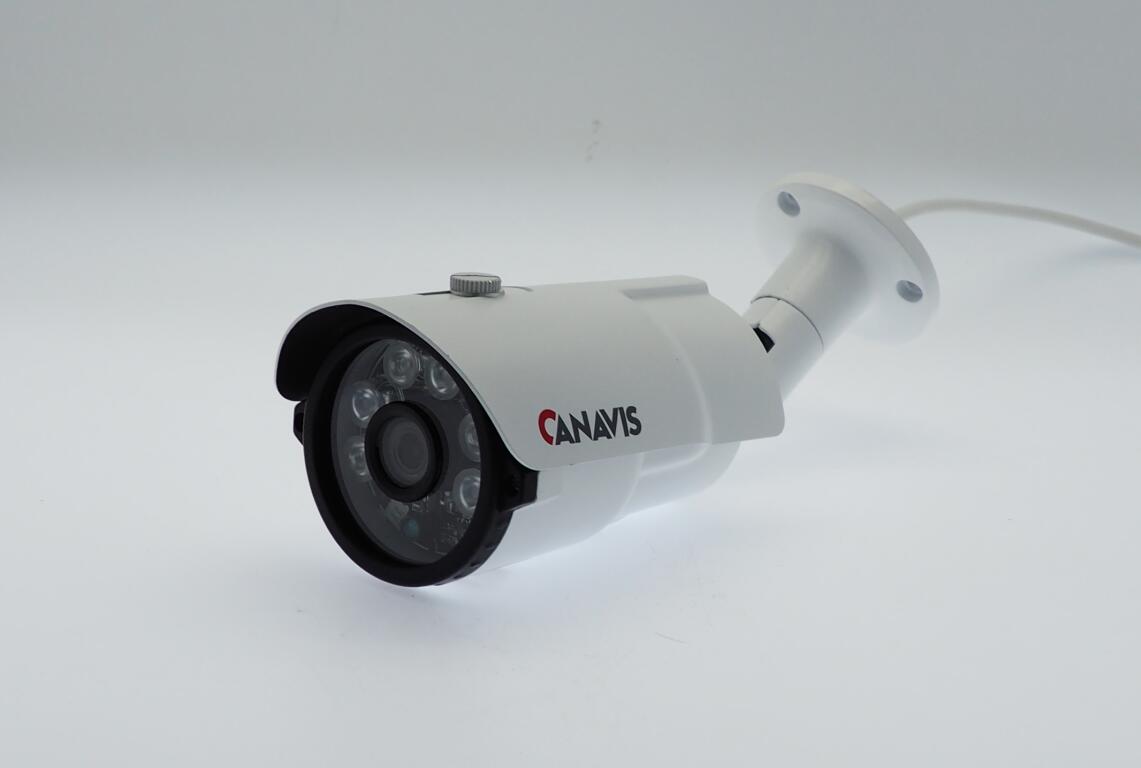

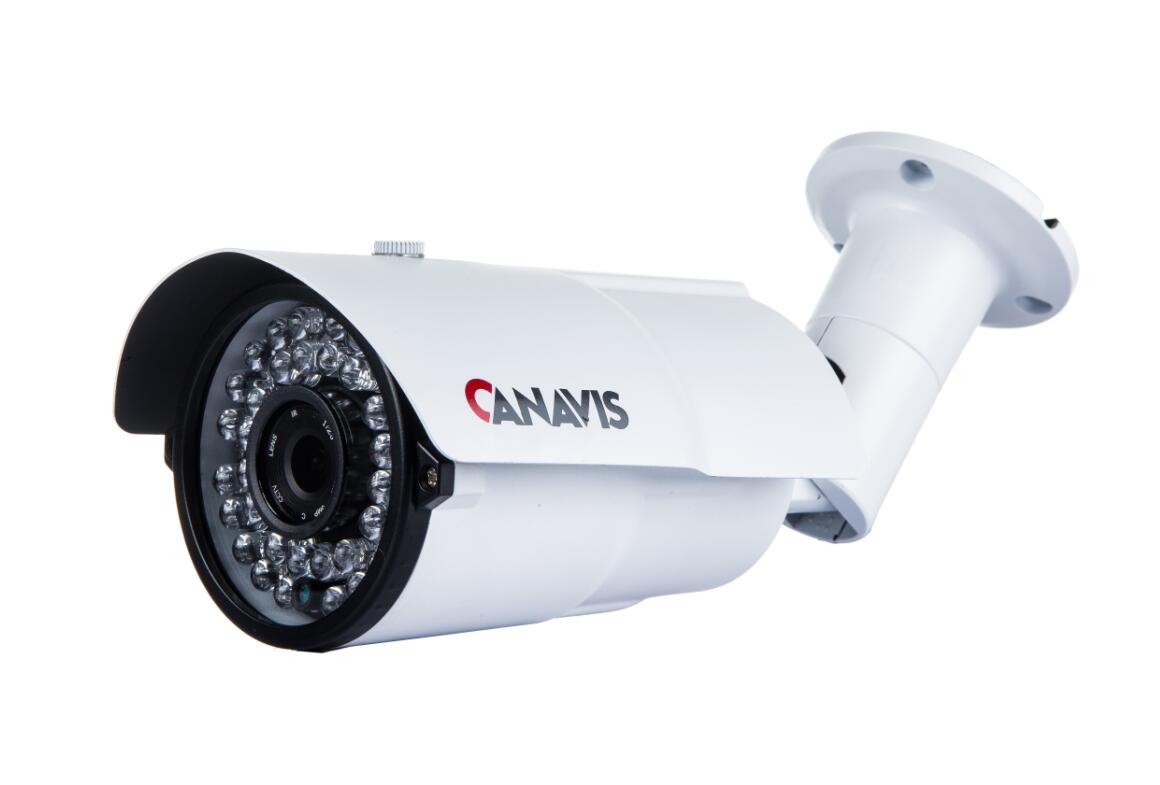

Weatherproof Camera

4 Sizes optional

  • Weatherproof Camera
  • Weatherproof Camera
  • Weatherproof Camera
  • Weatherproof Camera

There are totally 4 sizes on this camera design.Below is speficication for each size.


(1)Smallest size,suitable for IP 720P Camera, all kinds of analog cameras,AHD/CVI/TVI cameras

Model Name:CA-542

Cross section diameter of case: 50mm;

Standard Spec:

24IRs,Φ5;

IR Distance:10 meters;

board lens 3.6mm,2.8mm/6mm/8mm optional;

IP66 Waterproof;

Color: Black&White,other colors customizable


(2)Middle-1 size,suitable for all kinds of analog cameras,AHD/CVI/TVI cameras,IP cameras

Model Name:CA-642;

Cross section diameter of case: 60mm;

Standard Spec:

36IRs,Φ5

IR Distance:20 meters;

board lens 3.6mm,2.8mm/6mm/8mm optional;

IP66 Waterproof;

Color: Black&White,other colors customizable


(3)Middle-2 size,suitable for all kinds of analog cameras,AHD/CVI/TVI cameras,IP cameras

Model Name:CA-742;

Cross section diameter of case: 70mm;

Standard Spec:

48IRs,Φ5;

IR Distance:30 meters;

board lens 3.6mm,2.8mm/6mm/8mm optional;

IP66 Waterproof;

Color: Black&White,other colors customizable


Vari-focus Spec:

36IRs,Φ5;

IR Distance:20 meters;

vari-focal lens 2.8~12mm;

IP66 Waterproof;

Color: Black&White,other colors customizable


(4)Biggest size,suitable for all kinds of analog cameras,AHD/CVI/TVI cameras,IP cameras

Model Name:CA-942;

Cross section diameter of case: 90mm;

Standard Spec:

36IRs,Φ8;

IR Distance:50 meters;

CS lens 4mm,6mm/8mm/12mm/16mm optional;

IP66 Waterproof;

Color: Black&White,other colors customizable


Vari-focus Spec:

36IRs,Φ8;

IR Distance:50 meters;

vari-focal lens 2.8~12mm;

IP66 Waterproof;

Color: Black&White,other colors customizable
