1. High performance 4CH 1080P 5.0 Mega-pixel DVR, without network limitation, plug and play. 5-in-1 (AHD / CVI / TVI / CVBS / IP)
2. Maximum support 4T Hard Drive; P2P plug play function, simple and convenient.
3. No time delay (in LAN).
4. Remote viewing: Select the Main Menu > System Information > Cloud services. Then scanning the QR-code to download APP (XMEYE) or directly in the app market search and download the APP (XMEYE). Scanning the DVR recorder serial number (Right-click the mouse to select guide) and make sure the NAT status is connected (Please make sure the IP address of DVRis same segment as your router's ).
5. One year quality Warranty ! Lift time Tech Support !
Main processor Hi3531A
Image codec H.264+ (quasi H.265) / H.264
Monitoring quality VGA (maximum 1080P); HDMI (maximum 4K)
Preview capability 4*5M@20fps/4*4M
Coding ability 4*5M@18fps(AHD)/4*4M(AHD)/ 4*3M(AHD)/ 4*1080P(5 in 1)
Decoding ability 4*5M@18fps(AHD)/4*4M(AHD) / 4*3M(AHD)/ 4*1080P(5 in 1)
Multi-mode input Coaxial: 4*5M;
Mixing: 4*5M (coaxial) + 4*5M (network)
Network: 4*5M; 8*3M
Audio compression G.711A
Video mode Manual > Alarm > Motion Detection > Timing
Playback 4 channels (in coaxial input mode)
Video saving Hard disk
Backup method USB mobile hard disk

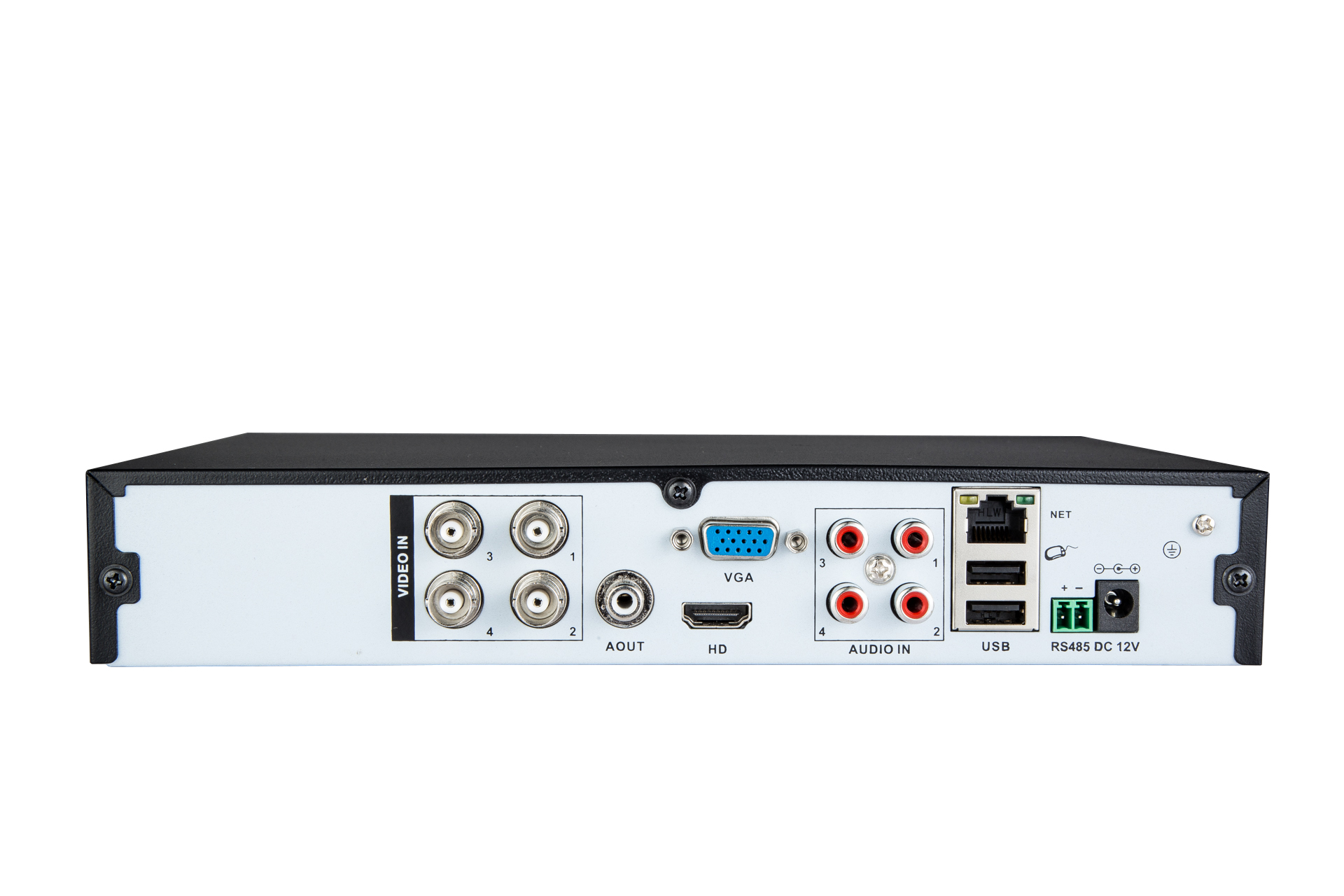

Video input 4-CH BNC
Video output 1-CH VGA,1-CH HDMI
Loop-through output No
Audio input 4-CH RCA
Audio output 1-CH RCA
Alarm input No
Alarm output None
Network Interface RJ45 10M/100M adaptive Ethernet port
PTZ control 1 RS485; support multiple PTZ protocols
USB interface 2 USB ports
Hard disk interface 1 SATA interfaces (maximum 4T each)
Wireless interface 3G, WIFI (expanded via USB)
Power supply 12V/2A
Power consumption Less than 15W (without hard disk)
Working temperature 0℃—+55℃
Working humidity 10%—90%
Atmospheric pressure 86kpa—106kpa
Gross Weight / piece: 1.2KG
