Overview
Essential details
Place of Origin:China
Brand Name:CANAVIS
Model Number:BA144A-W
Warranty:1 Year
Special Features:Built-in Siren
Sensor:1/3.2" CMOS Sensor
Style:BOX Camera
Function:Built-in Siren
Video Compression Format:H.264/H.265
Data Storage Options:Cloud, SD Card

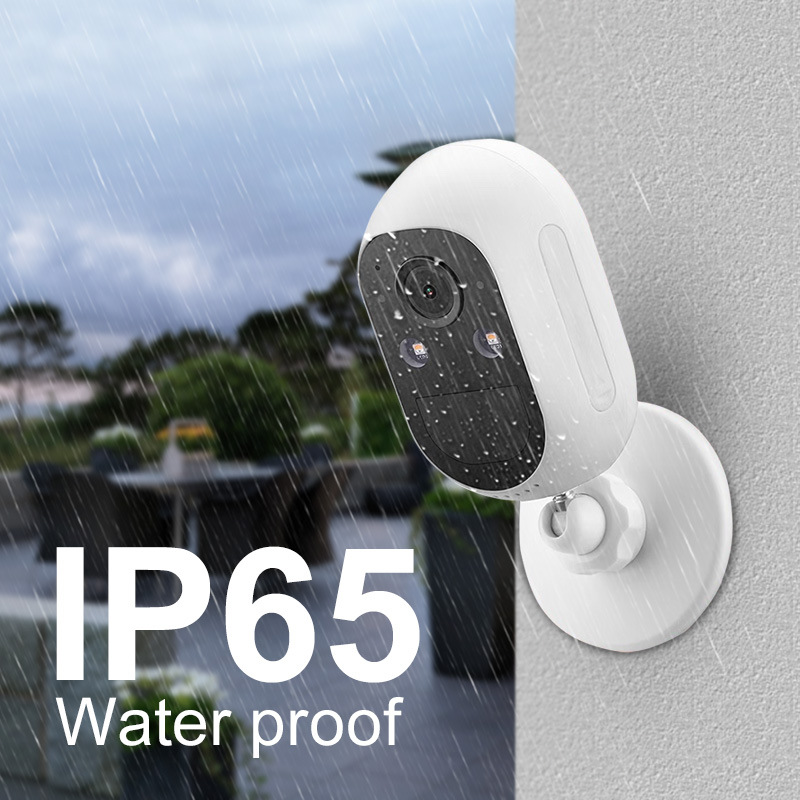

Application:Indoor/Outdoor
Customized support:Customized outer packaging and pattern
Model | LP001 |
Pixel | 4MP |
Sensor | 1/3.2" CMOS Sensor |

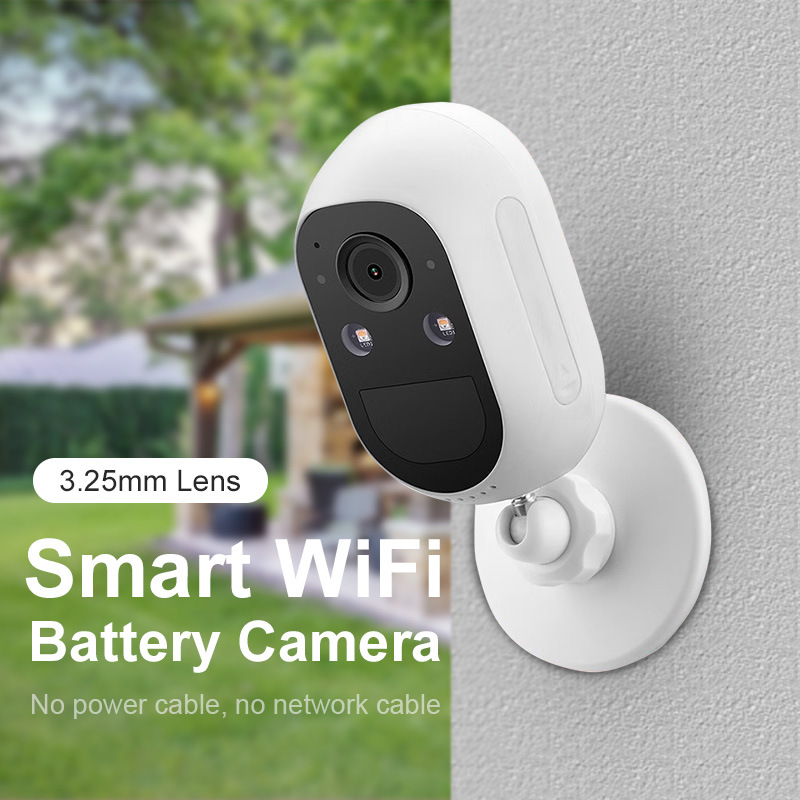

Lens | F2.6 ，3.25mm |
Shutter | Shutter adaptation |
Day-Night mode | ICR infrared filter |
DNR | 3D DNR |
WDR | Digital-WDR |
PIR Range | 10M, 120° |
IR Distance | 10M |
Video conpression rate | H.264/H.265 |
Resolution | Main stream:2560*1440 |
Audio coding format | ACC/G711 |
Maximum image size | 2560*1440 |
Frame rate | 15 fps |
Image settings | Adaptive |
BLC | Support |
Alarm function | PIR+ humanoid, motion detection alarm |
Alarm information | Alarm information push |
Audio function | Two-way audio |

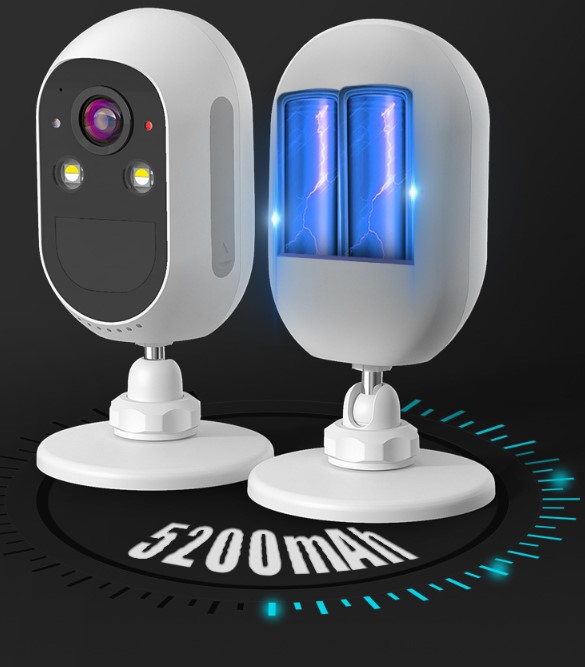

Battery | 2pcs 18650 Rechargeable Lithium Batteries |
Battery Capacity | 5200mAH |
Battery run time per charge | 6 months(average 3min wake-up per day) |
Indicator light | Red and green bi-color LED |
Button | 1 reset button 1 switch button |
Recording Mode | Alarm Recording |
WiFi | 802.11b/g/n |
Encryption | WEP, WPA, WPA2 |
Antenna | Built-in 3db FPC antennas |
Working Temp. and Humidity | -20℃~50℃，Humidity less than 85% (non-condensing) |
Lightning protection level | Standard IEC61000-4-5 |
Power | type-C DC 5V/1A |
Size | 94.5*59*55 mm |
Weight | 330g |
